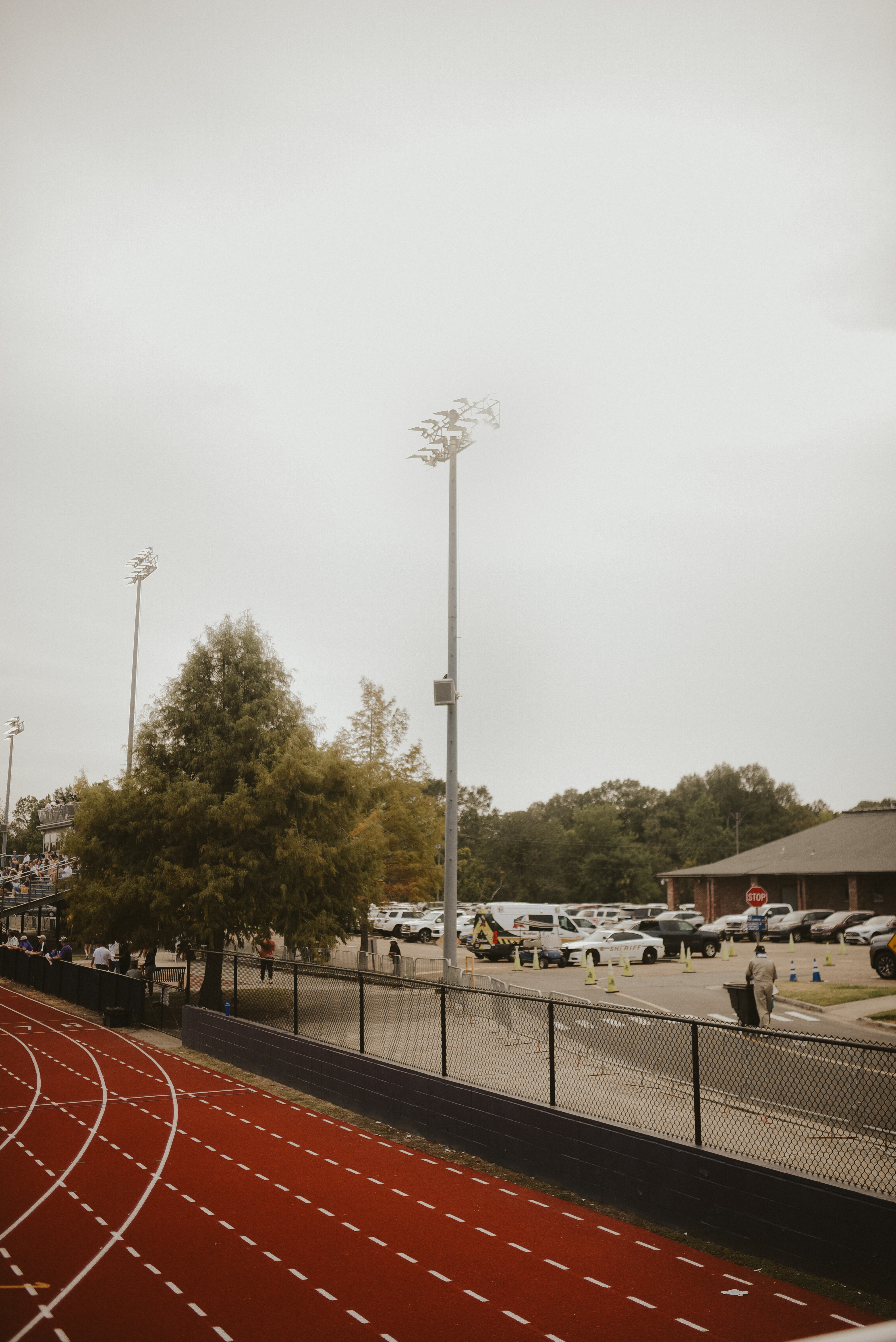

Five Danley boxes cover the whole stadium at Episcopal High School — an SH46 main horn mounted 35 feet up, three weatherized OS80s carrying the stands and the far side, and a TH118XL subwoofer underneath it all, driven by one four-channel DSP amplifier. And the layout was proven seat by seat, on paper, before a single box shipped.

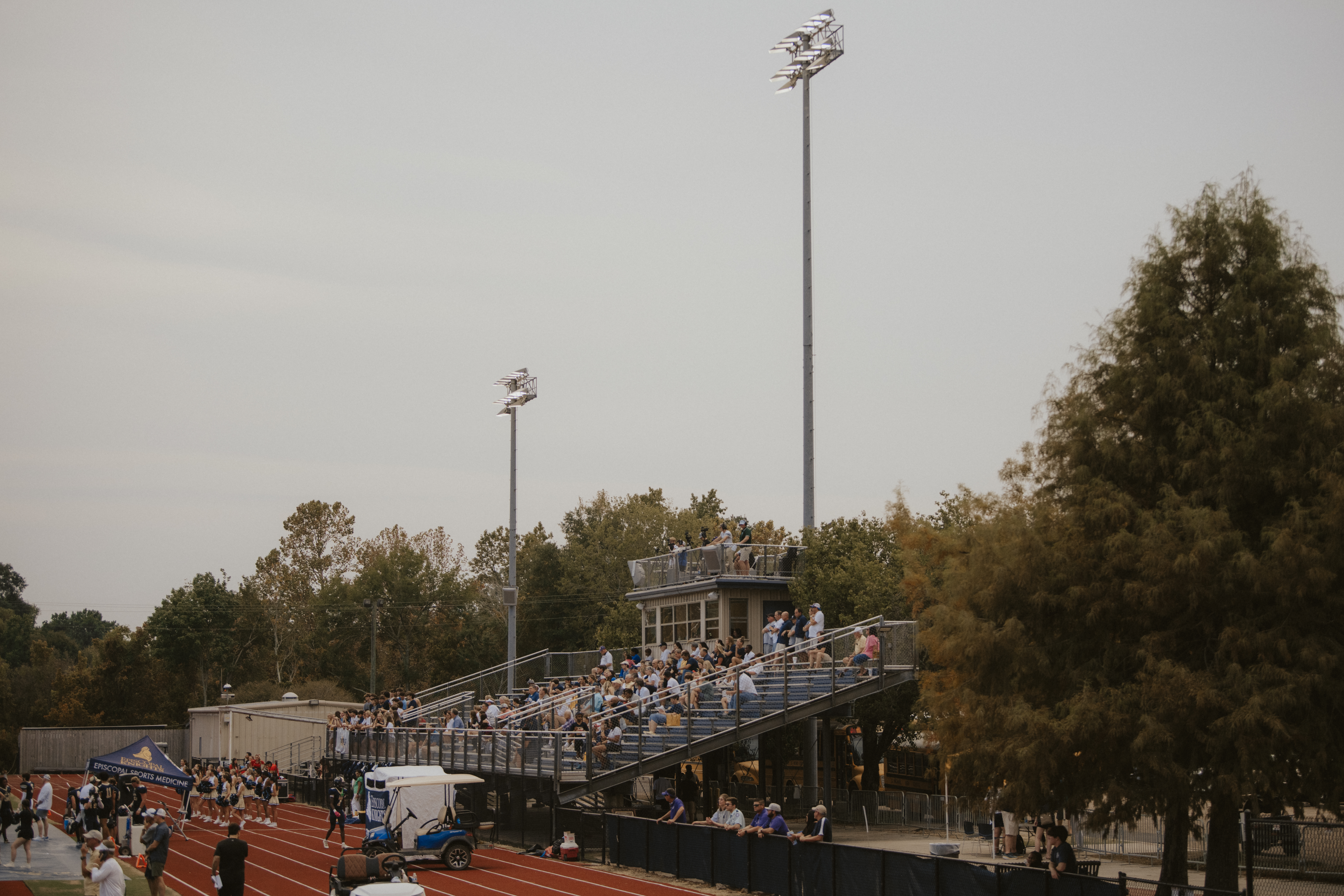

The Knights’ stadium is the full Louisiana package — home and visitor stands flanking a regulation track, the ball fields sitting just beyond, and nothing but open sky overhead. Episcopal Athletics had already committed to getting sound right across its venues; after the gym, the stadium was next.
Outdoors, there are no walls working for you. Every word and every note the crowd hears has to come straight off the boxes — aimed correctly, with enough headroom to sit on top of a Friday-night crowd. That makes it a design problem before it’s an installation problem, so that’s where this project started.
Blaine Wilkins and Pink Palace Media were exactly what we were looking for when Episcopal Athletics was looking to upgrade our sound systems in our indoor and outdoor athletic venues.
The stadium, the gym, or wherever you need to figure out a sound problem and top it off with quality hardware (same that the pro’s use) that will be future-proofed for years to come, Blaine will have the solution.
From mics and amps, to speakers and mounts Pink Palace Media is truly a one-stop shop that will be by your side every step of the way!
Randy Richard · Athletic Director, Episcopal High School
The main voice is a Danley SH46 — a 40° by 60° Synergy horn in its extreme-weatherized version, built to live outdoors permanently — mounted 35 feet up so its pattern lands on the seats instead of the sky. Three OS80s, Danley’s purpose-built outdoor cabinet, carry what the horn doesn’t: the near stands, field level, and the visitor side across the track, one of them riding a dedicated pole mount.

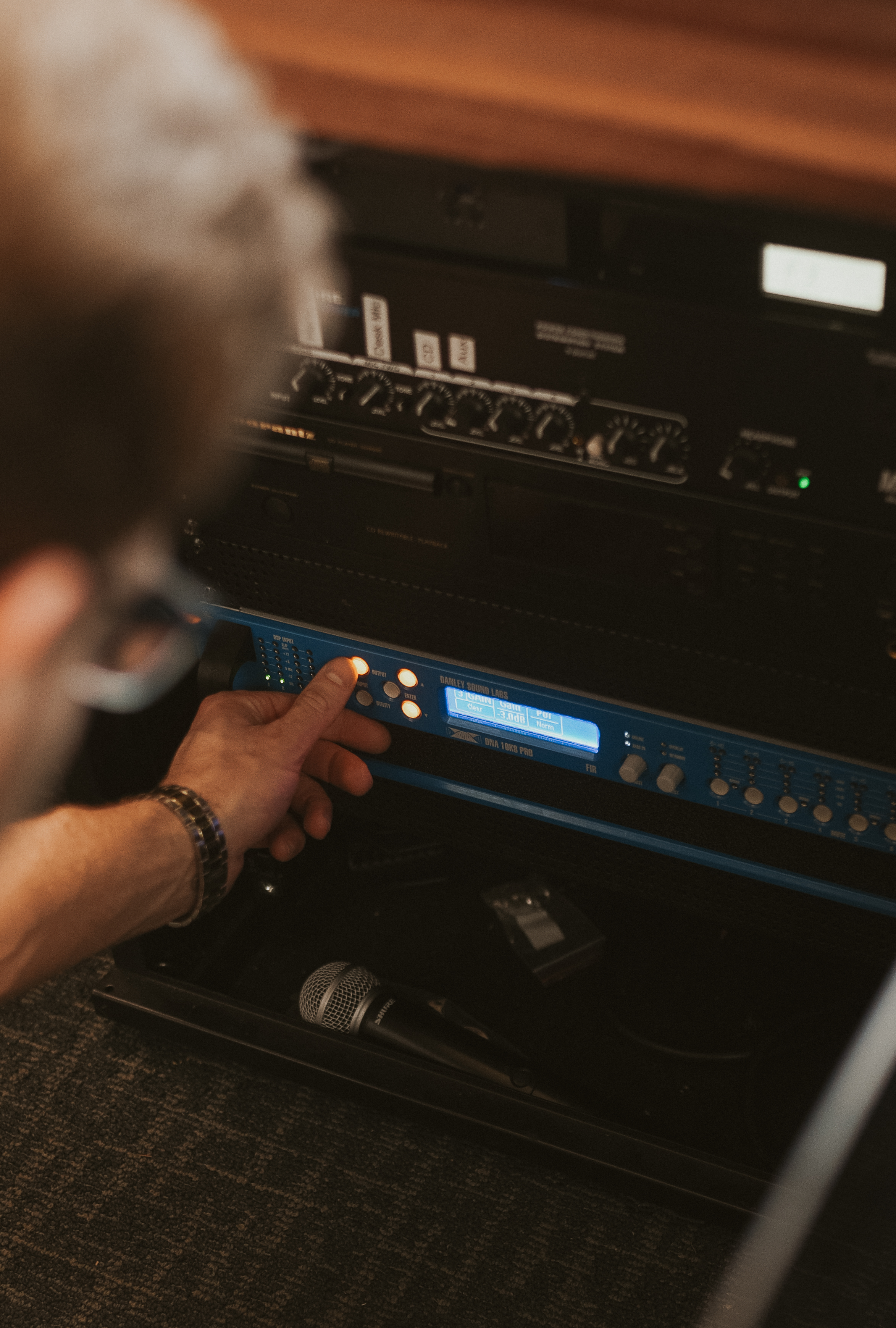

Underneath it all sits a TH118XL — Danley’s tapped-horn subwoofer, weatherized for the install — putting real low end into a space that usually swallows it. All five boxes run home to a single Danley DNA 10K4 Pro: four channels, 10,000 watts, onboard DSP handling crossovers, EQ, and limiting from one two-space rack unit. One amp, one stadium.

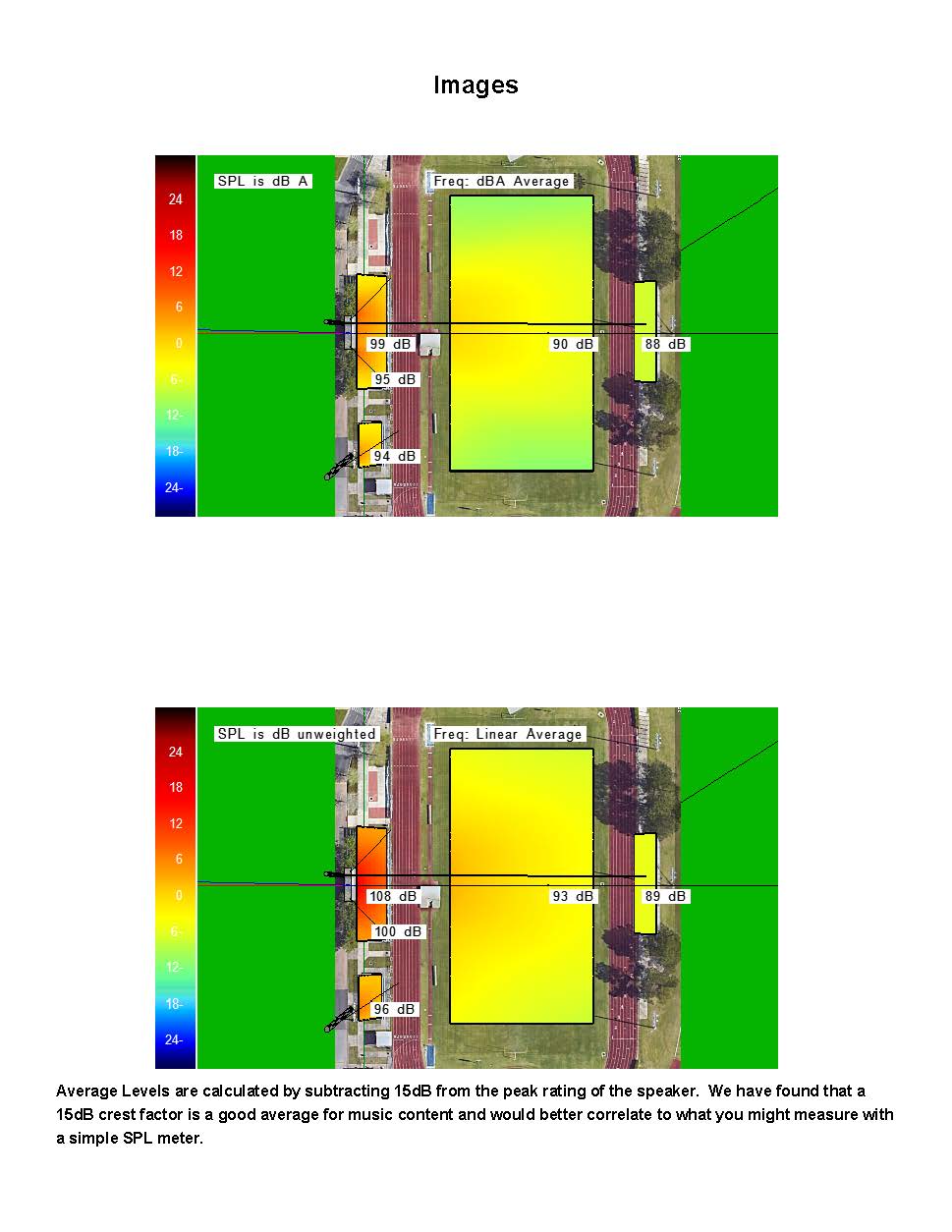

In March 2023, before anything was ordered, the whole layout went into Danley Direct’s modeling program — every speaker placed in a 3-D model of the actual stadium, aimed, and measured. The prediction came back seat by seat: mid-90s dB through the home stands, 90 at field level, high-80s across the visitor side. The coverage map said the system would work before the purchase order existed.
Modeling before mounting isn’t a special occasion here — it’s the same process behind every system we design and install. The customer sees the proof on paper first, then watches the stadium match it.

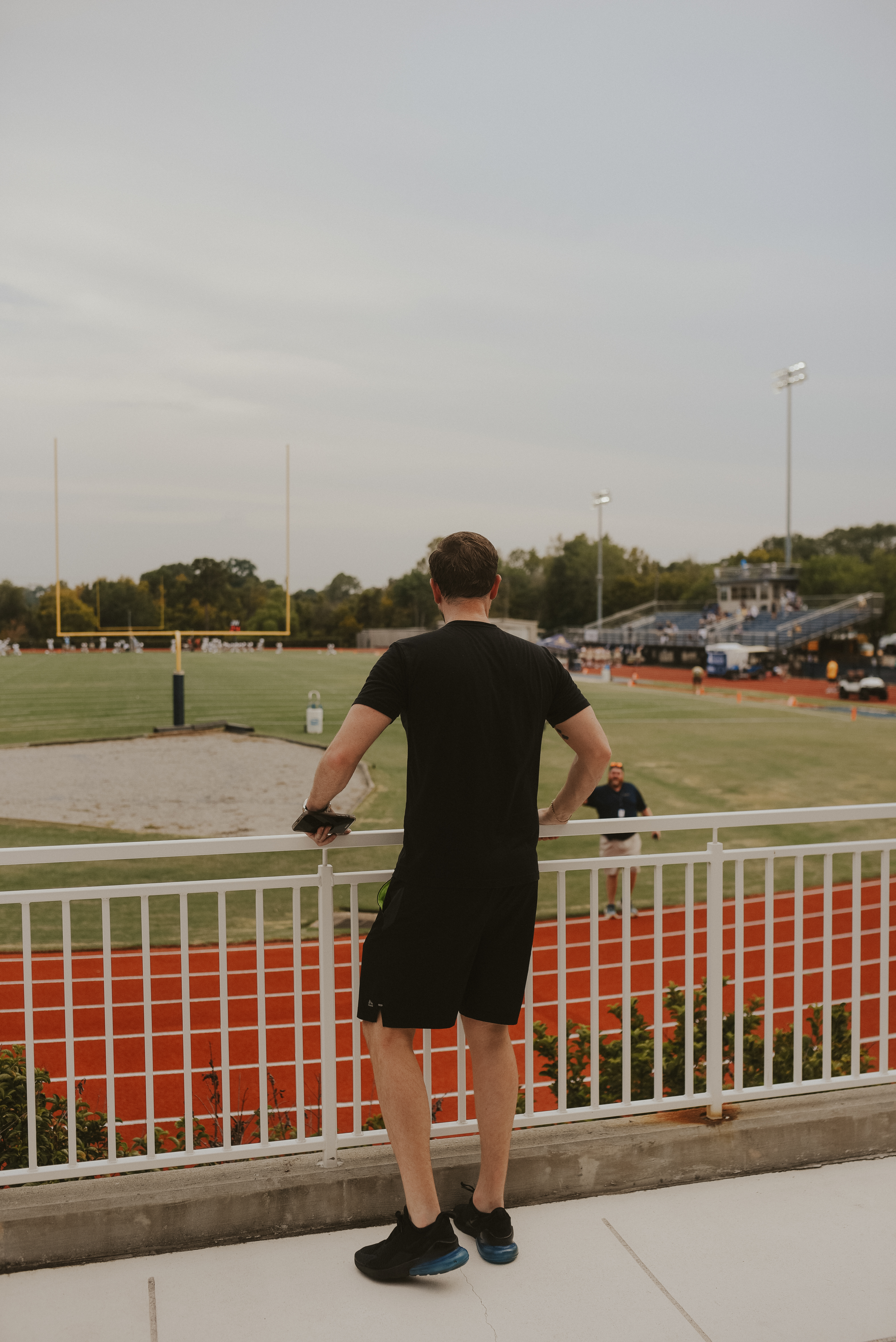

Designed on paper, delivered on the field. Five Danley boxes and one amplifier carry Friday night — exactly the way the model said they would.
